Coyote 5.0L 4V T-VCT Aluminator S/C Crate Engine (9.5:1)

Ford Racing's 5.0L Mustang "Aluminator" crate engine is a modern 5.0L 32-valve DOHC V-8 that uses advanced features like Twin Independent Variable Camshaft Timing (Ti-VCT) to deliver big power. Unlike the factory 5.0L engine, the "Aluminator" is built with low compression forged pistons and H-beam connecting rods to meet the demands of forced induction.

• Fits 2011-2012 Mustang GT
• 5.0L (302 cubic inches)
• 9.5:1 compression ratio for supercharged applications (nominal)
• Mahle  Hard Anodized forged pistons  with Graphal low friction coating
• Manley H-beam connecting rods with ARP bolts
• Lightweight aluminum cylinder block, part no: M-6010-A50L4V,  features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength
• Large rear sump oil pan with 8qt capacity features optimized oil drainback and windage tray to control oil and improve high-rpm performance
• Tuned composite Mustang GT intake manifold with production drive by wire 80 mm throttle body
• Four-valve-per-cylinder aluminum heads with roller-finger followers reduce friction with Boss Valve Springs, M-6513-M50BR
• Includes manual transmission engine harness, 6-bolt pressure plate flywheel and pilot bearing
• Front Cover is modified for Ford Racing Supercharger Kits: M-6066-MGT23TD, M-6066-MGT23PTD
• Includes colder, heat range zero (0) spark plugs for supercharging, part no: M-12405-M50
• Includes Ford Racing oil filter, part no: M-6731-FL820
• Vehicle harness and PCM not included. Use Ford Racing wiring, PCM and installation kit M-6017-A504V designed for street rod/project car installation.
• Does not include alternator, for alternator kit see M-8600-M50ALT or M-8600-M50BALT
• Remote Mount Filter Adapter M-6881-M50 available for applications requiring oil filter relocation
• Engine mount bosses and bellhousing mount pattern common to 4.6L modular engines.
• NOTE: Due to 9.5:1 compression ratio, custom tuning is required for optimum performance

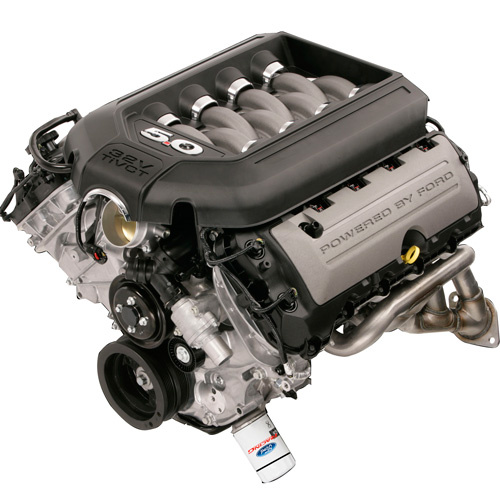

• Shown with optional 5.0L Mustang engine cover kit, Part No: M-9680-M50
